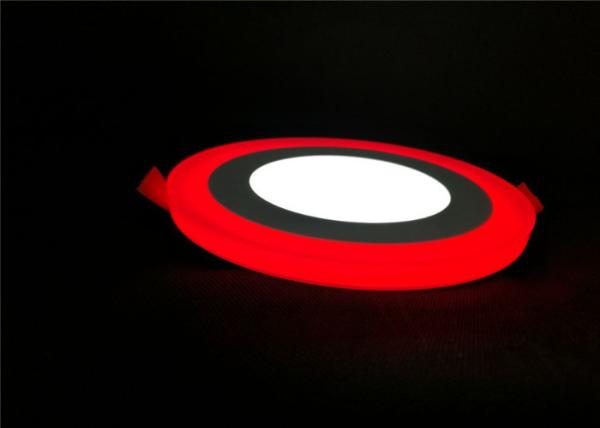

Commercial White+Red Slim 9W LED Ceiling Recessed Double Color
Panel Light
About 9W Round Recessed white+red LED Panel Light
With a White Gloss finish coupled with a translucent ps trim ,
these round LED panels look the part whether they are on or off .
Not only that , but the trim also houses the red edge lighting ,
making each part of the lights design useful.
Alongside this exquisite design, the functionality is never lost
with each unit being built to an IP40 rating. This means that
although not suited for external use , it can still be used in your
bathroom.
When both the central and edge are illuminated , you get a stunning
480 Lumens. This brightness rivals that of an 60W spotlight, whilst
consuming just 9W of power.
| Product Name | 6W+3W Recessed Round Double Color LED Panel Light |
| Lumens: | 420-480 Lumens |
| Power: | 9W |
| Light Color: | White (6W) + Red (3W) |
| Input Voltage: | AC 85-265V |
| Dimension (mm): | Ø145mm * 30mm |
| Cut-out (mm): | Ø110mm |
| Life Time : | 40,000 hrs |
| Light efficiency : | 70-80lm/w |
| Beam Angle: | 120º |
| CRI : | >70/80 |
| Dimmable: | No |
| Ring Colour: | Blue / Red / White / Pink / Yellow / Green |
| Power Factor | ≥0.5 |
| IP Rating: | IP40 |
| Warranty: | 2 Years |
| Driver: | Isolated dirver |
About the lcentral light color
Unlike traditional spotlights though , you can easily alter the
effect you get from this light . By turning the light off and then
back on, the mode will have changed. To get the mode you would like
just repeat this.
Like mentioned previously, this light uses solely LEDs, SMD LEDs to
be precise. This means that not only is the panel highly efficient
but it also lasts a very long time.
Its estimated life span of 40,000 hours means that if you use the
lights for 8 hours a day , 7 days a week you can still expect 14
years usage from the panel.
Not only does the panel last for an incomprehensible amount of time
, but quality isn't compromised at any point . With a Colour
Rendering Index (CRI) of >80, each light still represents any
product or object in the colour it was intended to appear . Not
only this , but the light spreads out, up to 120°.
To Choose the right model for you
If you haven't made the decision on the size of the panel you need
then have a look at our full range of Red Edge panels . With a diameter of 145mm, you can find smaller or
larger panels to suit your needs.
| Shape | Type | Model No | Wattage | Size (mm) | Cut-out (mm) |
| Round | Recessed | XT-SSM-3+3W.R | 3W+3W | Ø105×30 | Ø75 |
| XT-SSM-6+3W.R | 6W+3W | Ø145×30 | Ø120 |
| XT-SSM-12+4W.R | 12W+4W | Ø190×30 | Ø160 |
| XT-SSM-18+6W.R | 18W+6W | Ø240×30 | Ø210 |
| XT-SSM-24+12W.R | 24W+12W | Ø320×40 | Ø290 |
| Square | Recessed | XT-SSM-3+3W.SQ | 3W+3W | 105×105×40 | 75×75 |
| XT-SSM-6+3W.SQ | 6W+3W | 145×145×40 | 120×120 |
| XT-SSM-12+4W.SQ | 12W+4W | 190×190×40 | 160×160 |
| XT-SSM-18+6W.SQ | 18W+6W | 240×240×40 | 210×210 |
| XT-SSM-24+12W.SQ | 24W+12W | 320×320×40 | 290×290 |
Applications
Ideal for use at Home , Games Room , Kitchen , Bedroom , Children's
Bedroom , Lounge , Living Room , Bars , Clubs , Modern Shop Designs
