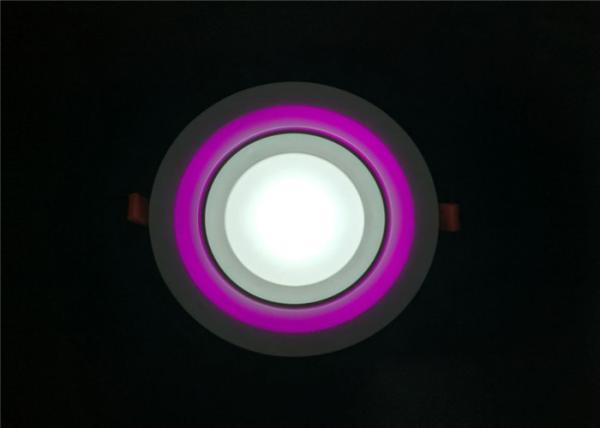

18+6W Double Color Recessed Bottom Emitting Round LED Down Light
White+Pink
24 watt Pink Edge Lit Round LED Downlight Description
Efficient and high quality commercial lighting needn’t look like
it’s from decades gone past . This 24W Pink Edge Round LED
Downlight skips this issue with its contemporary pink edge
lighting, making it fit for commercial applications with a 21st
century look.
The sturdy aluminium and plastic construction packs in 1400 lumens
of brightness using just 24W of power. This brings together a blend
of performance and efficiency , making it perfect for offices or
other commercial areas of use.
Requiring only an 160mm sized cutting hole , it provides a wide 120
degrees beam angle , making it multipurpose and great for general
illumination.
This pink edge bottom emitting round down light also has a colour
rendering index (CRI) of at least 70 – so your room and the objects
in it will look really close to their true colours.
It’ll keep shining for up to 40,000 hours too , giving up to double
the life of an equivalent fluorescent light.
Three light modes for your choice
It has three lighting modes : the white central light , the pink
inner circle light , both light.
You'd rather just have the white central lighting on , you can do .
Simply turn it on and off and it will cycle through the lighting
patterns . This means you can have either just the White light ,
just the pink light or both, for maximum brightness.
This Round 24W LED Panel Light also gives off a nice and crisp
colour thanks to its high Colour Rendering Index of 70+ . Also,
this light isn't limited to a set area thanks to its wide 120° beam
angle helping it spread the light out far.
This incredible output is maximised thanks to the fact that the
light source used is LEDs. This means that with its 40,000 hour
estimated lifespan, you can get up to 15 years worth of use.
Data Sheet for 24W Two Color Spot Light
| Item No: | XT-SSDR-18+6W.R |
| Item Name: | Bottom Emitting Double Color LED Down Light |
| Lamp Power: | 18W(cool white) + 6W(warm white) |
| Dimension: | Ø180mm×39mm |
| Colours Combination | white+pink / white+green / white+red / white+warm white
white+blue / white+white |
| Material: | Die Cast Aluminium + PS |
| Luminous Flux: | Spot white light : 1260-1440lm |
| Input Voltage: | AC85-265V |
| Output1: | DC6-20V 300mA±5% |
| Output2: | DC42-65V 300mA±5% |
| Frequency Range: | 50/60Hz |
| LED Type: | 2835 SMD |
| Color Rendering Index(CRI): | Ra>70/80 |
| Power Factor(PF): | >0.5 |
| Beam Angle: | 120° |
| Working Lifetime(Hour) : | >40000 hrs |
| IP Rating : | IP40 |
| Color Temperature: | 3000K-6000K |
| Luminous Efficiency: | 70-80lm/w |
| TC: | 80°C |
| TA: | 50°C (max) |
| Warranty: | 2 years |
There’s also some more modles to customise you , dependent on your
personal needs
| Item No | Watt | Dimmension (mm) | Cut-out (mm) |
| XT-SSDR-6+3W.R | 6W+3W | Ø120×33 | Ø110 |
| XT-SSDR-12+4W.R | 12W+4W | Ø150×36 | Ø140 |
| XT-SSDR-18+6W.R | 18W+6W | Ø180×39 | Ø160 |
| XT-SSDR-6+3W.SQ | 6W+3W | 120×120×33 | 110×110 |
| XT-SSDR-12+4W.SQ | 12W+4W | 150×150×36 | 140×140 |
| XT-SSDR-18+6W.SQ | 18W+6W | 180×180×39 | 160×160 |

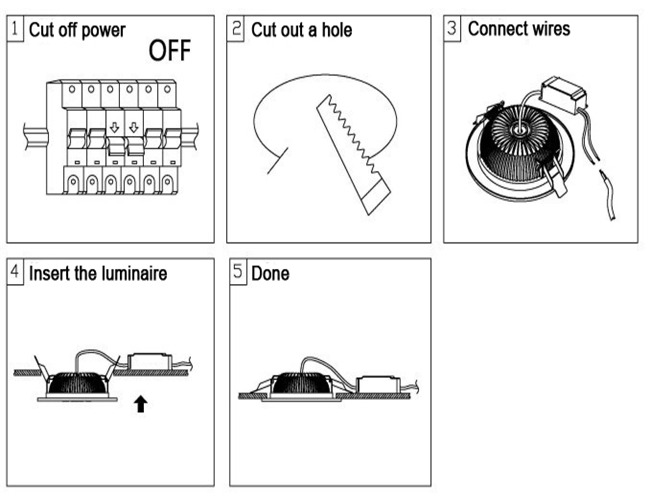

How to Install it
Recommended Applications
1. Illumination lighting for homes , offices , restaurants , hotels
, malls , casinos , bars etc
2. Display lighting for museums , galleries , stores , malls , shop
windows , exhibitions etc
3. Landscape accent , spot Lighting , architectural Lighting ,
display case accent , artwork lighting, mood
lighting, amusement park accent.
