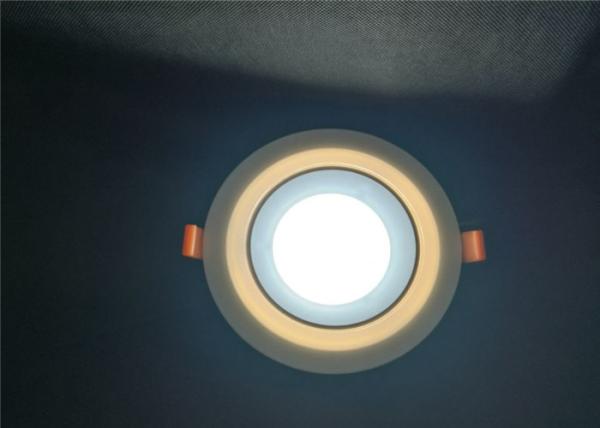

16W Bottom Emitting Double Color Round Embedded LED Downlight
Museum Lighting
Features for Double Color Bottom Emmiting Downlight
1. More compact structure, cuter appearance , smaller in size to
save the space
2. Bottom emitting design , using reflective light leading board ,
no glare, eyes protecting
3. Excellent heating sink , better cooling performance.
4. Combine SMD light source, widely usage.
5. Instant 100 % light, no warm-up time , no flickering , no
humming
6. Multiple color options: red , blue , green , pink , warm white
and white for circle part
7. No Mercury and other hazardous materials , fully eco-friendly
8 AC85-265V work voltage, can be used in any country in the world.
How does it light in three modes
Continuous Switch ON/OFF to change different mode as following:
When turn on , - the central spot light on , then turn off and turn
on again - the circel light on, then turn off and turn on- the two
light on. This 3 modes circulate when turning on/off.
Data Sheet for 16W Two Color Spot Light
| Item No: | XT-SSDR-12+4W.R |
| Item Name: | Bottom Emitting Double Color LED Downlight |
| Lamp Power: | 12W(cool white) + 4W(warm white) |
| Dimension: | Ø150mm×36mm |
| Colours Combination | white+pink / white+green / white+red / white+warm white
white+blue / white+white |
| Material: | Die Cast Aluminium + PS |
| Luminous Flux: | Spot white light : 840-960lm |
| Input Voltage: | AC85-265V |
| Output1: | DC6-20V 300mA±5% |
| Output2: | DC22-45V 300mA±5% |
| Frequency Range: | 50/60Hz |
| LED Type: | 2835 SMD |
| Color Rendering Index(CRI): | Ra>70/80 |
| Power Factor(PF): | >0.5 |
| Beam Angle: | 120° |
| Working Lifetime(Hour) : | >40000 hrs |
| IP Rating : | IP40 |
| Color Temperature: | 3000K-6000K |
| Luminous Efficiency: | 70-80lm/w |
| TC: | 80°C |
| TA: | 50°C (max) |
| Warranty: | 2 years |
Detailed Specification
| Item No | Watt | Dimmension (mm) | Cut Hole (mm) |
| XT-SSDR-6+3W.R | 9 W (6W+3W) | Ø120×33 | Ø110 |
| XT-SSDR-12+4W.R | 16 W (12W+4W) | Ø150×36 | Ø140 |
| XT-SSDR-18+6W.R | 24W (18W+6W) | Ø180×39 | Ø160 |
| XT-SSDR-6+3W.SQ | 9 W ( 6W+3W) | 120×120×33 | 110×110 |
| XT-SSDR-12+4W.SQ | 16 W (12W+4W) | 150×150×36 | 140×140 |
| XT-SSDR-18+6W.SQ | 24 W (18W+6W) | 180×180×39 | 160×160 |
Applications
1. Atmospher lighting such as club , theatre , bar , cafe , museum
, gallery , leisure spaces , exhition hall ,
hotels and restaurant etc
2. For illumination and decoration lighting especially for indoor
lighting such as dinning room , bed room ,
kitchen , hallway , living room , office building , super market ,
meeting room , showroom , and other
building lighting etc
3. Interior decoration such as drawing room , balcony , stairways
etc
