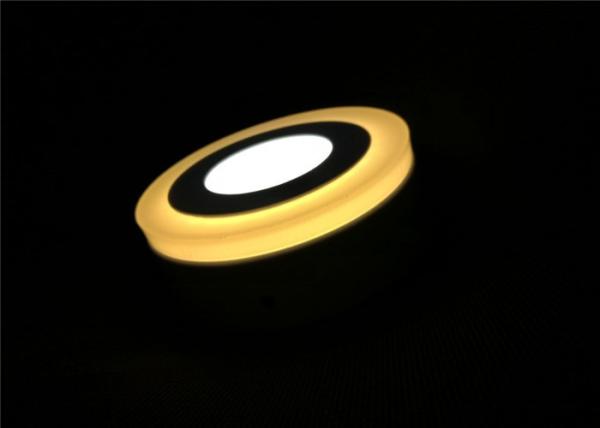

6W Surface Mounted LED Double Color Panel Light Ceiling Down Lamp
AC 110V/220V
Product Features
• Super Bright Light Output & well controlle beam angle.
• Continuous Switch ON/OFF to change different mode . Have 3 Modes
,when turn on - the centrel light on,
then turn off and turn on again - the side light on , turn off and
turn on the two light on , this 3 modes
circulate when it turning on/off.
• Easy maintence, wide range more energy saving.
• Instant start, no flickring, no humming
• High shock-proofing & Vibration resistant design.
• New elegent design body.
• Frosted Acrylic Ring makes light more brightness.
• Stable segment control driver solution.
Product Benefits
• Very low energy consumption; saving at least 80%
• No UV, No IR & No Mercury radiation in the light beam
• Instant 100 % light, no warm-up time
• Correct operation even at low temperatures
Specification Table for White+ Warm White double color panel
| Product Name | 3W+3W Dual Color LED Panel Light |
| Lumens: | 210-240 Lumens |
| Power: | 6W (3W+3W) |
| Input Voltage: | AC 85-265V |
| Dimension (mm): | Ø105mm |
| Height (mm): | 40mm |
| Life Time : | 40,000 hrs |
| Beam Angle: | 120º |
| Dimmable: | NO |
| Colour: | White with Warm White (Pink Red Green and Blue Ring Optional) |
| Colour Rendering Index (CRI): | ≥ Ra70/80 |
| Power Factor | ≥0.5 |
| IP Rating: | IP40 |
| Warranty: | 2 Years |
| Driver: | Isolated dirver |
Parameter Data
| Shape | Installation | Model No | Wattage (W) | Size (mm) |
Round |
Surface | XT-SSM-3+3W.R | 3W+3W | Ø105×40 |
| XT-SSM-6+3W.R | 6W+3W | Ø145×40 |
| XT-SSM-12+4W.R | 12W+4W | Ø190×40 |
| XT-SSM-18+6W.R | 18W+6W | Ø240×40 |
| XT-SSM-24+12W.R | 24W+12W | Ø320×40 |
| XT-SSM-36+36W.R | 36W+36W | Ø390×40 |
Square |
Surface | XT-SSM-3+3W.SQ | 3W+3W | 105×105×40 |
| XT-SSM-6+3W.SQ | 6W+3W | 145×145×40 |
| XT-SSM-12+4W.SQ | 12W+4W | 190×190×40 |
| XT-SSM-18+6W.SQ | 18W+6W | 240×240×40 |
| XT-SSM-24+12W.SQ | 24W+12W | 320×320×40 |
| XT-SSM-36+36W.SQ | 36W+36W | 390×390×40 |
Applications:
Ideal for use at Home , Games Room , Kitchen , Bedroom , Children's
Bedroom , Lounge , Living Room , Bars , Clubs , Modern Shop Designs
