3W+3W Surface LED Double Color Round LED Ceiling Lamp White with
Pink Edge
Features
High brightness, brilliant lighting mode , energy saving , 2 years
long operation time
Perfect light for your living room , bedroom , reading room , etc
Description
• Appearance color : White
• Light color : White + Pink
• Materias : Aluminium + PS
• Light source : 2835 SMD
• Power supply : AC 85-265V
• Power : 3W white + 3W pink
• Luminous flux: 210 lms
• Lighting mode : Outside ring bright(pink light), inside ring
bright(white light), inside and outside ring bright
(pink light+white light)
• Control mode: Switch control : power on once: Pink , twice :
white , three times : all bright
• Life: 40000(H)
• Usage scope : Business household lighting , engineering
illumination
• Product size : Diameter: 10.5cm, thickness: 4cm
• Package list: 1*Ceiling lamp
Description
| Item Type | Double Color LED Panel Light |
| LED Type | SMD 2835 |
| Power | 3W+3W / 6W+3W / 12W+4W / 18W+6W |
| Voltage | AC 85-265V |
| Inner Color Optional | Warm White , Daylight White , Cold White |
| Outer Color Optional | Green , Red , Blue , Pink , Red , Warm White , White |
| Shape | Round / Square |
| Installation Type | Recessed Mount / Surface Mount |
Features | 1.Ultra brightness |
| 2.Use good quality Led chip, life span reaches 40,000 hours |
| 3.As indoor lighgting , can be fixed at any place |
| 4.Multicolor |
| 5.Low power consumption |
| 6.Eco-friendly , energy saving |
| 7.No glare , no flash |
| 8.IP rating: IP40 |
Advantages | 1.Wide application such as office , classroom , supermarket ,
anywhere you like |
| 2. Low cost |
| 3. Easy to install |
| 4. No flicker , quick start , no ultraviolet ray and intrared ray |
| 5. No color difference , good weld technology |
6.Three light modes for choice :spot light in white / Green Circle
light / Both white and green light |
| Service | OEM , ODM or Customize |
IP40 rating : dustproof , mosquito proof and Damp proof
With an IP rating IP40 , it resists the dust at diameter 1mm , at
the same time it is mosquito repelling to protect your panel light
from dust and insects.
Has an IP40 Ingress Protection Rating , you’ll be able to use this
brilliant light fitting in virtually any location, but you might
want some lights for other areas as well which is where our vast
array of commercial LED lighting comes into its own.
The perfect type of light fittings for any room where there isn’t a
great deal of space to pay around with , our Round Surface Mounted
LED Panel lights will be just the thing .
Pink Edge Lit Round Surface LED Panel Light
| Wattage | 3W+3W | 6W+3W | 12W+4W | 18W+6W | 24W+12W | 36W+36W |
| Product Size | Ø105×40 | Ø145×40 | Ø190×40 | Ø240×40 | Ø320×40 | Ø390×40 |
| Lumens | 210-240lms | 420-480lms | 840-960lms | 1260-1440lms | 1680-1920lms | 2520-2880lms |
| IP Rating | IP40 |
| Input Voltage | AC85-265V |
| Beam Angle | 120 Degrees |
| Life Span | 40,000 Hours |
| Warranty | Two Years |
| Dimmable: | No |
| Light Colours | Cool white / blue / green / pink / red / warm white |
| CRI | ≥ Ra70/80 |
| Power Factor | ≥0.5 |
Applications:
1. Widely used of home decoration use, hotels , clubs , shipping
malls
2. Architectural decorative lighting , boutique atmosphere lighting
3. Extensively applied in Backlighting , concealed lighting ,
channel letter lighting
4. Emergency and security lighting , advertisement sign lighting
5. Decorative lights for holiday , event , and show exhibition
6. Ideal for use at Home , Games Room , Kitchen , Bedroom ,
Children's Bedroom , Lounge , Living Room, Bars , Clubs , Modern
Shop Designs

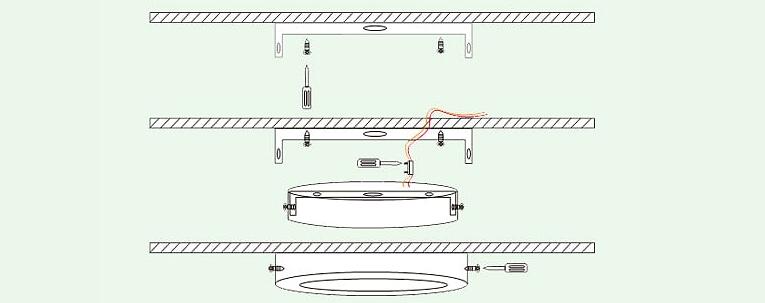

Installation Guide
1. To make sure the power is off
2. Fix the pad to ceiling with screws in packaging
3. Connect the driver with input
4. Join the lamp to pad with screws
