    Round Recessed Led Panel Light Integrated 30W White With Internal Driver

    Ask Lasest Price
    Brand Name : Xiangteng
    Model Number : XT-CBAZ
    Certification : BIS CE
    Supply Ability : 5000pcs/day
    Delivery Time : 30 days
    • Product Details
    • Company Profile

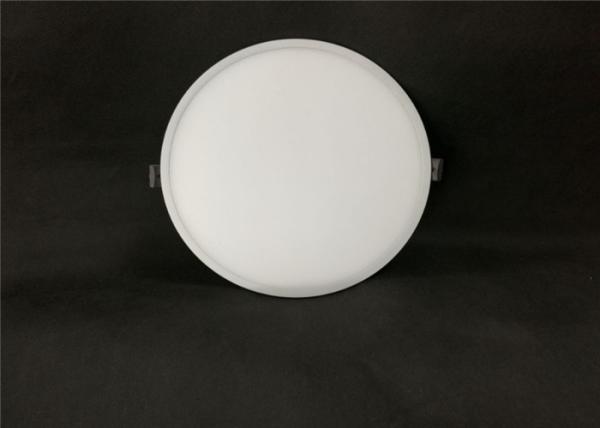

    Round Recessed Led Panel Light Integrated 30W White With Internal Driver


    Integrated 30W White Round Recessed Flat Led Panel Light With Internal Driver


    Product Description


    • Super narrow edge width 8mm , makes wide light angle

    • Light source SMD4014 , high luminous efficiency more than 90lm/w

    • Power factor > 0.9 , show you the actual color of the objects

    • Integrated LED driver to save the space effectively
    • Easy Installation , non-dimmable
    • Ideal replacement for office and retail showroom lighting

    • 80% power saving : more light output than traditional halogen and CFLs

    • Die cast aluminium lamp base , more effective to heat dissipation


    How To Choose Your LED Panel


    Replacing your existing fluorescent modular ceiling lights with Integral retro-fit LED panels is a fast and easy way to enjoy significant savings on energy . You also benefit from the best of both worlds with reduced maintenance and electricity costs and a brighter environment


    There are very compelling reasons to switch ; with a payback of around 1-2 years or less depending on installation , cleaning , tube replacement and disposal costs . Integral LED panels have been designed to be highly cost effective and with energy prices only going up in the long term


    Size And Position


    The size of the LED panel you will need will be largely governed by your existing ceiling grid . Once the old fitting is removed it takes a matter of minutes to install a drop-in Integral LED panel . Integral LED panels have an integrated LED driver for rapid installation .


    If you are refurbishing a space – you can use the opportunity to switch to LED and optimise your lighting in terms of light output and cost . Costs can be reduced further by the use of control systems for occupancy detection . Work can be carried out in phases if required to minimise disruption .


    Technical Data


    Model NoShapeStyleVoltagePowerDimmension
    (mm)
    Cut-Out
    (mm)
    XT-CBAZ-8W.RRoundRecessedAC85-265V8WØ85×15Φ70
    XT-CBAZ-15W.R15WØ145×15Φ135
    XT-CBAZ-22W.R22WØ170×15Φ155
    XT-CBAZ-30W.R30WΦ220×15Φ205
    XT-CBAZ-8W.SQSquareRecessedAC85-265V8W85×85×1570×135
    XT-CBAZ-15W.SQ15W145×145×15135×135
    XT-CBAZ-22W.SQ22W170×170×15155×155
    XT-CBAZ-30W.SQ30W220×220×15205×205


    Application


    Landscape lighting , architectural lighting , entertainment lighting , restaurants , hotels , ambient lighting , art galleries etc


    Perfect for meeting room , store , super market , office , store , exhibition , dance halls , bars , kitchen , parlor , bedroom and other places lighting and decoration
