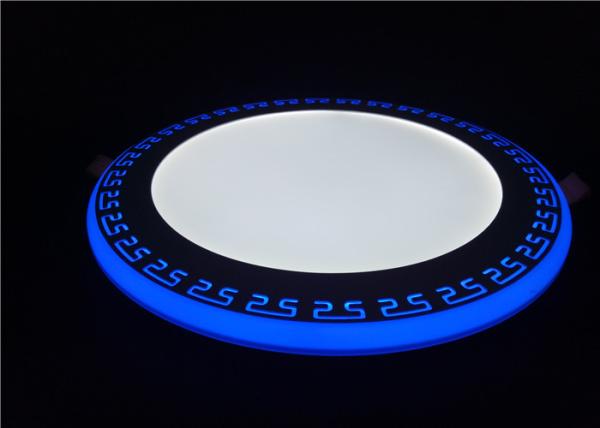

24W Great Wall Decorative Pattern Double Color Led Panel Light
Recessed Style White+Blue
18+6 watt Blue Edge Lit Square LED Panel Light with Decorative
Pattern
As commercial lighting , this double color panel with decorative
pattern panel light can bring a modernised look to your business , It can be used widely for commercial areas such as offices as well as being able to be
installed in domestic locations such as bathrooms and kitchens ,
thanks to its IP40 protection.
It is a perfect replacement for spotlight , coming with a
unmistakable blue edge this panel comes on with the main white
light it can bring any area to life . It also features a 1440 lumen
light output , equivalent to the light of a 120W halogen spotlight
from only 24w of power .
It also features a cut out hole of 210mm² whilst maintaining a wide
beam angle of 120° to help fill the area with high quality light
that features a colour rendering index (CRI) of 80, making it one
of the best coloured LEDs to date.
Not only do you benefit from such a great light output but being an
LED , you also get to take it in for up to 40,000 hours making it
double the life of fluorescent fittings at an average use of 8
hours per day.
Attention
This lamp is non dimmable, do not adjust the light color by dimmer
. There is the potential to damage the LEDs , something that is not
covered by the warranty.
Features
1. Product variety : 3 ways light modes , customized LED panel
lights are available for your choice.
2. Modern appearance : Combine lighting and decoration function
together
3. Ultra slim : better design flexibility and enables a wider
spectrum of illumination techniques and higher
light transmission
4. Flexible application : wall and ceiling application.
5. Perfect lighting performance : instant soft light with no dark
spot.
6. Superior production craft: good corner seam junction
7. Central lighting color : warm white, neutral white and cool white
8. Long lifespan: excellent thermal management and refined alumimum
lengthen lifetime up to 40,000
hours.
Specification Table
| Product Name | 18+6W Recessed Round Double Color LED Panel Light |
| Lumens: | 1260-1440 Lumens |
| Power: | 24W |
| Decorative Pattern | the Great Wall |
| Light Color: | White (18W) + Blue (3W) |
| Input Voltage: | AC 85-265V |
| Dimension (mm): | Ø240*30mm |
| Cut-out (mm): | Ø210mm |
| Life Time : | 40,000 hrs |
| Beam Angle: | 120º |
| Dimmable: | No |
| Edge Lit Colour: | Blue / Red / White / Pink / Yellow / Green |
| Colour Rendering Index (CRI): | ≥ Ra 70/80 |
| Power Factor | ≥0.5 |
| IP Rating: | IP40 |
| Warranty: | 2 Years |
| Driver: | Isolated dirver |
Parameter Data
| Shape | Type | Model No | Wattage | Size (mm) | Cut-out (mm) |
Round |
Recessed | XT-SSM-3+3W.R | 3W+3W | Ø105×30 | Ø75 |
| XT-SSM-6+3W.R | 6W+3W | Ø145×30 | Ø120 |
| XT-SSM-12+4W.R | 12W+4W | Ø190×30 | Ø160 |
| XT-SSM-18+6W.R | 18W+6W | Ø240×30 | Ø210 |
| XT-SSM-24+12W.R | 24W+12W | Ø320×30 | Ø290 |
Square |
Recessed | XT-SSM-3+3W.SQ | 3W+3W | 105×105×40 | 75×75 |
| XT-SSM-6+3W.SQ | 6W+3W | 145×145×40 | 120×120 |
| XT-SSM-12+4W.SQ | 12W+4W | 190×190×40 | 160×160 |
| XT-SSM-18+6W.SQ | 18W+6W | 240×240×40 | 210×210 |
| XT-SSM-24+12W.SQ | 24W+12W | 320×320×40 | 290×290 |
How to Install
Applications
1. Ideal for Home lighing such as Bedroom , Kitchen , Living Room ,
Sitting Room , Porch Corridor etc.
2. Commeercial lighting for Games Room , Bars , Clubs , Modern Shop
Designs , Hotels , Restaurants ,
Shopping Malls , Super Markets , Department Stores , Holiday
Decorations. etc.
