White+White 24W Round Recessed Two Color Led Panel for South
America market

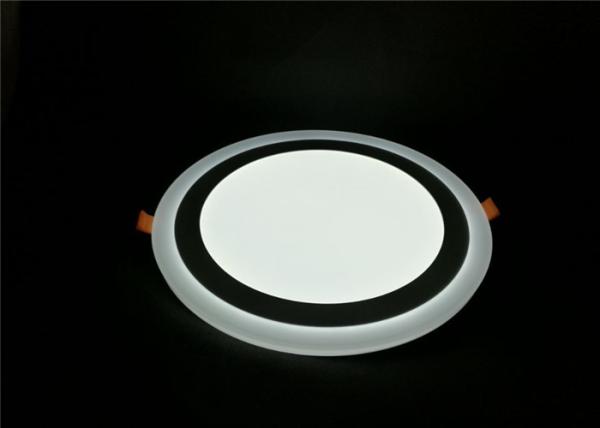

All in one fitting : 18W + 6W Recessed White+White LED Panel Light
This special light combination white edge and white central light
fitting , which designed specially for the consumers from South
America and Central America . They profer the double color
white+white or white + warm white. Due to their own traditional
culture.
Of course there are another color combination such as white + warm
white combination , we can match the colors according to your
requirements.
It is customized just for you ,unique light affect brings you a new
lease of life . You can choose the light mode as you like just by
simply turn the panel off and then back on and you'll cycle through
the modes . Once you find the mode you want , just leave it.
it is perfect lighting solution for your home , office or
commerical premises . Widely used for bedroom, sitting rooms ,
living room, guest room, gallery , corridor etc, sure it is also
best for commercial lighting such as hotel , restaurant , club ,
bar , meeting room, exibition room, super market , department store
etc.
A nice replacment for tradtional halogen and CFLs
It will also save you a great deal of money when you use it as a
replacement for your existing halogen or fluorescent fittings . It
consumes a total of just 24 Watts yet is able to generate the 1500
lumen equivalent of a 100 Watt traditional light – an 80% reduction
to your lighting energy bill right there!
It is 40,000 hours life span , much longer traditional light
sources . It shall work for your 14 years , even if switched on for
8 hours every day!
High CRI gives your the true color of the objects , and light
evenly to protect your eyes . More important is that provides you
three light choice from one light fitting , you can alter from one
to the other freely..
Specification Table
| Product Name | 18W+6W Recessed Mount Round Double Color LED Panel Light |
| Central Light Lumens: | 1260-1440 Lumens |
| Power: | 24W |
| Light Color: | White (18W) + White (6W) |
| Input Voltage: | AC 85-265V |
| Dimension (mm): | Ø240*30mm |
| Cut-out (mm): | Ø210mm |
| Life Time : | 40,000 hrs |
| Beam Angle: | 120º |
| Dimmable: | No |
| Edge Lit Colour: | Blue / Red / White / Pink / Yellow / Green |
| Colour Rendering Index (CRI): | ≥ Ra 70/80 |
| Power Factor | ≥0.5 |
| IP Rating: | IP40 |
| Warranty: | 2 Years |
| Driver: | Isolated dirver |
Parameter Data
| Shape | Install Type | Item No | Wattage | Dimension( mm) |
Round |
Surface | XT-SSM-3+3W.R | 6W (3W+3W) | Ø105×30 |
| XT-SSM-6+3W.R | 9W (6W+3W) | Ø145×30 |
| XT-SSM-12+4W.R | 16W (12W+4W) | Ø190×30 |
| XT-SSM-18+6W.R | 24W (18W+6W) | Ø240×30 |
| XT-SSM-24+12W.R | 36W(24W+12W) | Ø320×40 |
| XT-SSM-36+36W.R | 72W(36W+36W) | Ø390×40 |
Square |
Surface | XT-SSM-3+3W.SQ | 6W (3W+3W) | 105×105×40 |
| XT-SSM-6+3W.SQ | 9W (6W+3W) | 145×145×40 |
| XT-SSM-12+4W.SQ | 16W (12W+4W) | 190×190×40 |
XT-SSM-18+6W.SQ | 24W (18W+6W) | 240×240×40 |
| XT-SSM-24+12W.SQ | 36W(24W+12W) | 320×320×40 |
| XT-SSM-36+36W.SQ | 72W(36W+36W) | 390×390×40 |
How to Install the Surface Panel
1. Make sure the power is off
2. To cut a hole in the ceiling , the hole size of the ceiling
should be the same as the lamp’s size
3. Connect the DC connectors with the panel and the driver
4. Insert the clips to the ceiling , make sure it is fastened
5. To be sure the lamp installed indoor spaces.
