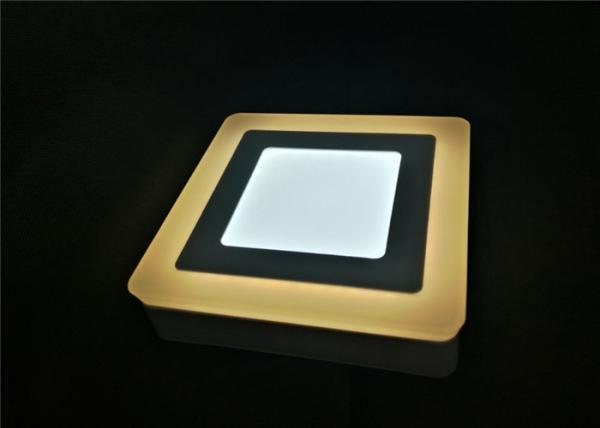

9W LED Surface Dual Color Ceiling Light Panel Spotlight
White+Yellow Edge Lit
Advantages for 6W+3W Surface Square Dual-Color LED Panel Light
• Super bright inside square white light + soft outside edge warm
white light , perfect lighting for stores, supermarkets ,
exhibitions , dance halls , hotels , restaurants , bars , kitchen ,
parlor , bedroom and other lighting and decoration.
• 3 Modes: White light on; edge light on; dual color light on.
• Beam Angle: 120 degrees
• More than 3 times energy saving compare to traditional energy
saving bulb
• Long life span more than 40,000hrs. 85% Energy-saving and
environment-friendly.
• Safe and easy to install, no warm up time required, no noise and
no flickering.
Specification Table
| Item No: | XT-SSM-6+3W.SQ |
| Item Name: | Yellow Edge Square Surface 9W LED Panel Light |
| Lamp Power: | 6W(cool white) + 3W(warm white) |
| Dimensions: | 145mm (W) ˣ 145mm (L) ˣ 40mm(H) |
| Colours Optional | white+pink / white+green / white+red / white+warm white
white+blue / white+white |
| Material: | Die Cast Aliminium + PC |
| Luminous Flux: | Spot White Light : 420-480 lms |
| Input Voltage: | AC85-265V |
| Output1: | DC 6-20V 300±5% |
| Output2: | DC 15-28V 300±5% |
| Frequency Range: | 50/60Hz |
| LED Type: | 2835 SMD |
| Color Rendering Index(CRI): | Ra>70/80 |
| Power Factor(PF): | >0.5 |
| Beam Angle: | 120° |
| Working Lifetime(Hour) : | >40000 hrs |
| IP Rating : | IP40 |
| Color Temperature: | 6000K |
| Luminous Efficiency: | 65-80lm/w |
| TC: | 80°C |
| TA: | 50°C (max) |
| Warranty: | 2 years |
Particulars
• In dual colour 3 switch modes
• Simple yet elegant design for both home and commercial use
• Professional high quality panel
• 2 year warranty
• Use good quality LED , resistance light falling
• Highly-efficient electronics ballast ensure to long lifespan
using
More Watt to meet your full demand
| Shape | Installation | Model No | Wattage (W) | Size (mm) |
Round |
Surface | XT-SSM-3+3W.R | 3W+3W | Ø105×40 |
| XT-SSM-6+3W.R | 6W+3W | Ø145×40 |
| XT-SSM-12+4W.R | 12W+4W | Ø190×40 |
| XT-SSM-18+6W.R | 18W+6W | Ø240×40 |
| XT-SSM-24+12W.R | 24W+12W | Ø320×40 |
| XT-SSM-36+36W.R | 36W+36W | Ø390×40 |
Square |
Surface | XT-SSM-3+3W.SQ | 3W+3W | 105×105×40 |
| XT-SSM-6+3W.SQ | 6W+3W | 145×145×40 |
| XT-SSM-12+4W.SQ | 12W+4W | 190×190×40 |
| XT-SSM-18+6W.SQ | 18W+6W | 240×240×40 |
| XT-SSM-24+12W.SQ | 24W+12W | 320×320×40 |
| XT-SSM-36+36W.SQ | 36W+36W | 390×390×40 |
Application
• Living room , bedroom , kitchen,
• Conference , meeting room , show room , showcase
• School , university , hospital , hotel
• Supermarket , department store
• Emergency and security lighting , advertisement sign lighting
• Decorative lights for holiday , event , and show exhibition
