15W Ultra Slim Round Ceiling LED Panel Light with Plastic Back
Cover
Features
• EASY AND SAFE INSTALLATION – Our innovative, slim design allows
for easy retrofit , remodel or new construction installation from
below the ceiling
• SUITABLE FOR MULTIPLE LOCATIONS – Our lights are perfectly suited
for use in hospitals , commercial locations , around the house,
bathrooms , and many more . The product is suitable for use in damp
locations due to being vapor proof.
• EXTREMELY BRIGHT LEDs – These retrofit lights use 5 watts to
provide 400 lumens with an 80 CRI, over 80 lumens per watt!
• ULTRA THIN LED – With our new ultra slim design only a 3 inches
ceiling hole and 3.5 inches of ceiling space are needed to fit our
LED recessed light.
• SAVE MONEY AND ENERGY – Energy Star rating provides high light
output with minimal power usage and will last 36,000 hours or +16
years when on every day for 6 hours/day. Save yourself the hassle
of constantly having to change lights, and save on your electrical
bill!
Advantages
* Cable terminal is anti drag , easy dissasembly , and conveniet
appliabie safety
* Double spring design , rich elasticity and easy to install
* Thermal conductivity nylo back plate, fast heat dissaption
* Aopts narrow bezel design , with light leakage prevention design
* The panel light exactly embedded ceiling, makes the ceiling flat
* Easy installation. Can be easily fitted instead of ordinary
recessed light fixture
Specifications
Item No. | XT-SLG-RD |
| Dimension (mm) | Ø85*20 | Ø120*20 | Ø170*20 | Ø225*20 |
| Opening Size (mm) | Ø75 | Ø110 | Ø155 | Ø210 |
| Wattage | 5W | 9W | 15W | 22W |
| Input Voltage | AC85~265V |
| Current | 260-280mA or 280-300mA |
| Luminous flux | 70~90lm/W |
| Light source | SMD2835 |
| Material | Aluminium + PP+Thermal Conductiivity Nylon |
| Color rendering index | >80 |
| Driver | Insolated Driver / BIS Driver |
| Color temperature | 3000k-3500K / 4000K~4500K / 6000K~6500K |
| Light color | Warm white / Neutral white / Cool white |
| Working temperature | ‘-20℃±45℃ |
| Beam angle | 120 º |
| IP code | IP44 |
| Life span | 40000 Hours |
| Warranty | 2 years |
| MOQ | 500 pcs /item |

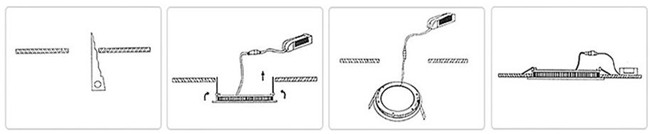

Easy to Install
Turn off the home power.
Cut a appropriate hole on sheetrock according to product cut-hole
size.
Connect the led transformer to the power supply (AC voltage design,
doesn't matter which leader connect to hot and neutral wire).
Pull up the spring clips and insert the light fixture to the hole.
Adjust it to hook the ceiling tightly.
The application scope
Widely used in city building , leisure square and other public
places lighting and landscaping , family , hotels , shopping malls
, office lighting , also can be used in advertising signs , stage
sets , household decoration , etc
