12W+4W The Great Wall Recessed Double Color Round LED Panel Light
White+Warm White
Product Description
Double color LED panel light is based on a light-emitting diode
smaller than the head of a pin , using Blue Pink Red Yellow and
White color light source , high quality acrylic material outer ring
surrounded by light source , luminescence uniform realize situation
transformation , the inner ring using high photosynthetic
efficiency , high CRI , high lumen white SMD high quality light
source of energy conservation and environmental protection . It is
upgrade products of the mainstream slin design LED panel light ,
application areas have the uniqueness .
It is mounted as single units on a computer-controlled circuit
board . The smaller size of these LEDs allows for viewing of the
display at a closer distance without the visual distortion that
would be present in a standard display
Product Parameter
| Item No | Wattage | Dimension (mm) | Hole Size (mm) |
| XT-SSM-3+3W.R | 6W (3W+3W) | Ø105×30 | Ø80 |
| XT-SSM-6+3W.R | 9W (6W+3W) | Ø145×30 | Ø120 |
| XT-SSM-12+4W.R | 16W (12W+4W) | Ø190×30 | Ø175 |
| XT-SSM-18+6W.R | 24W (18W+6W) | Ø240×30 | Ø210 |
| XT-SSM-3+3W.SQ | 6W (3W+3W) | 105×105×40 | 75x75 |
| XT-SSM-6+3W.SQ | 9W (6W+3W) | 145×145×40 | 110x110 |
| XT-SSM-12+4W.SQ | 16W (12W+4W) | 190×190×40 | 160x160 |
| XT-SSM-18+6W.SQ | 24W (18W+6W) | 240×240×40 | 210x210 |
Product Specification
| Item Type | panel lights |
| LED type | SMD2835 |
| Power | 3W+3W 6W+3W 12W+4W 18W+6W |
| Voltage | AC85-265V |
| Inner color optional | daylight , warm white , cool white |
| Outer color optional | blue , red , green , pink , warm white |
| Shape type | Round / Square |
| Installation type | Recessed |
| Working temperature | -40C - +50C |
| Life time | 40000hrs |
Advantages

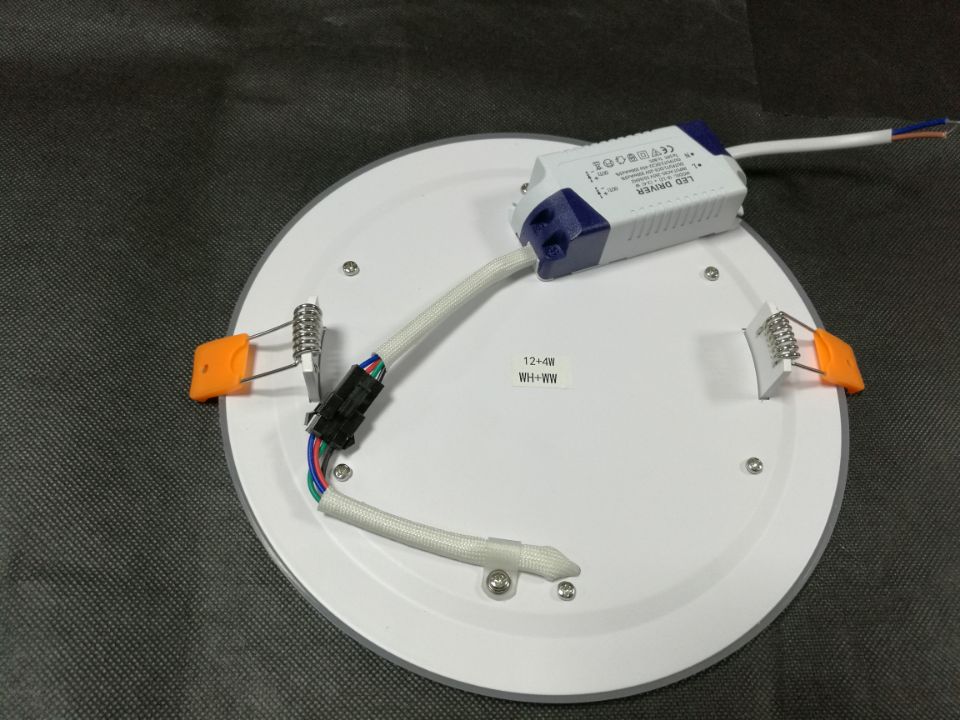

♦ IC Isolated driver, AC85-265V
♦ High quality LED chip
♦ Aluminium alloy shell
♦ Enviroment protection, no UV&IR radiation
♦ Healthy light source, no flicker, no dark area
♦ Long service life up to 40000hrs
♦ Simple and convenient installation
♦ 2 years warranty
Application
To be used specially for atmospher lighting such as club, exhition
hall, hotels and restaurant etc
Also widely used for illumination and decoration lighting
especially for indoor lighting such as dinning room , bed roon ,
kitchen, hallway, living room , office building, super market ,
meeting room , showroom , and other building lighting etc

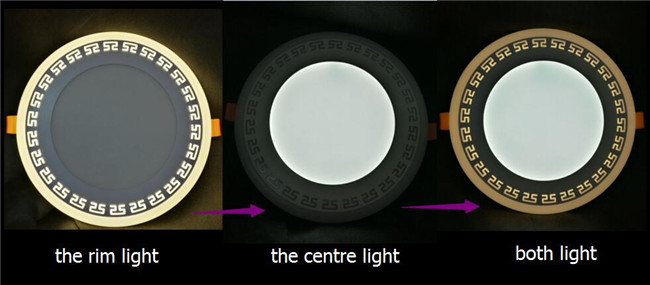

Subsection Control
Just switch on/off continuesly to change the mode you prefer as
following
1. First Switch on : the outline border light
2. Second Switch on : the centre light
3. Third Swith on: both light
