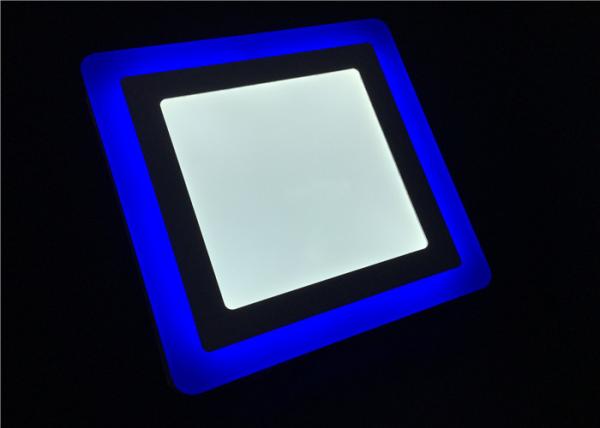

12+4watt Hanging Square Double Color LED Ceiling Panel Llight
Commercial Lighting
Your Reasons to Choose 12W+4W Double Color Panel
With its 3-Cycle capability which will enable you to achieve
several unique combinations of the blue and white LED lights . Just
switch the light on and you’ll get a deep blue and white lighting
combination . Press the switch once again for white alone and again
for just the blue.
This light fitting isn’t all about style over substance either
because you’ll be able to use it in all kinds of environments
whether they’re indoors or outdoors. It shall save you quite a lot
of money when you use it as a replacement for your existing halogen
or fluorescent fittings . It consumes a total of just 16 Watts yet
is able to generate the 1600 lumen equivalent of a 100 Watt
traditional light – an 80% reduction to your lighting energy bill
right there!
The all-in-one fitting will also last considerably longer than more
traditional light sources, its 40,000 hour expected lifespan
meaning that it will still be going strong in 17 years, even if
switched on for 8 hours every day!
| Model: | 12W+4W Two Color LED Ceiling Light |
| Lumens: | 1600 Lumens |
| Power: | 16W (12W+4W) |
| Input Voltage: | AC 85-265V |
| Dimension (mm): | 190 * 190mm |
| Height (mm): | 40mm |
| Life Time : | 40,000 hrs |
| Beam Angle: | 120º |
| Dimmable: | NO |
| Colour: | Cool White with Blue Edge (Pink Yellow Green & Red edge optional) |
| Colour Rendering Index (CRI): | ≥ Ra70/80 |
| Power Factor | ≥0.5 |
| IP Rating: | IP40 |
| Warranty: | 2 Years |
| Driver: | Isolated dirver |
| Brand: | Xiangteng |
To Choose the Light You Prefer
The other option you have on this panel light is a choice of 2
colour options – Blue and Cool White (6000K), the difference being
the perceived warmth of the light.
Blue is great for a homely environment , such as the living area or
the bedroom.
Cool white is a much brighter light that is better suited to areas
that need to be well lit , like the kitchen or a work space for
example.
Product Parameter
| Shape | Type | Item No | Wattage | Dimension( mm) |
Round |
Surface | XT-SSM-3+3W.R | 6W (3W+3W) | Ø105×30 |
| XT-SSM-6+3W.R | 9W (6W+3W) | Ø145×30 |
| XT-SSM-12+4W.R | 16W (12W+4W) | Ø190×30 |
| XT-SSM-18+6W.R | 24W (18W+6W) | Ø240×30 |
| XT-SSM-24+12W.R | 36W(24W+12W) | Ø320×40 |
| XT-SSM-36+36W.R | 72W(36W+36W) | Ø390×40 |
Square |
Surface | XT-SSM-3+3W.SQ | 6W (3W+3W) | 105×105×40 |
| XT-SSM-6+3W.SQ | 9W (6W+3W) | 145×145×40 |
| XT-SSM-12+4W.SQ | 16W (12W+4W) | 190×190×40 |
| XT-SSM-18+6W.SQ | 24W (18W+6W) | 240×240×40 |
| XT-SSM-24+12W.SQ | 36W(24W+12W) | 320×320×40 |
| XT-SSM-36+36W.SQ | 72W(36W+36W) | 390×390×40 |
Application
To be used specially for atmospher lighting such as club, exhition
hall, hotels and restaurant etc
Also widely used for illumination and decoration lighting
especially for indoor lighting such as dinning room , bed roon ,
kitchen, hallway, living room , office building, super market ,
meeting room , showroom , and other building lighting etc
