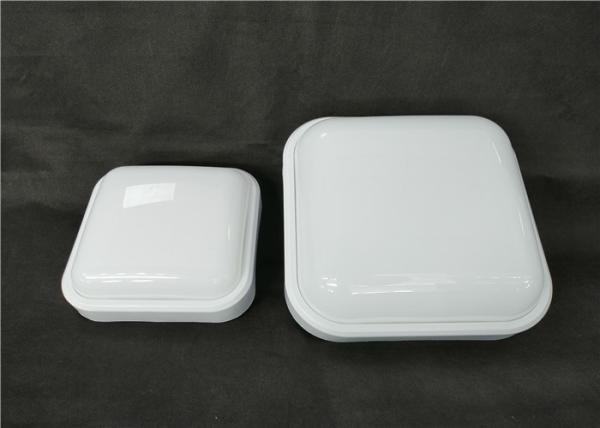

LED 18W and 24W Bathroom Square White Bulkhead Ceiling Light
Surface Mount ip65
Product Details
IP65 Square PP+Alloy PP LED Bulkheads
This IP65 Led bulkhead features black / white alloy PP base and PP
opal diffuser, more durable.
It offers an energy saving and cost effective solution compared to
standard bulkhead luminaires.
With separate PC bracket , easy installation, low maintenance cost.
Three warranty mode optional: 3 years, 2 years and 1 year
Luminous efficiency accordingly for your choice: 120lm/w , 100lm/w
, and 80lm/w
Perfect replacement of traditional wall light and ceiling light,
Waterproof, moisture proof and dust proof, to be designed specially
for walkways, entrances, stairwells and car parks etc.
Square Ip65 Bulkhead Luminair Specifications
| Model No. | XT-FCDSQ-18W / 24W |
| Type | Wall mount |
| Shape | Square |
| Dimmension (mm) | 165*165*65 / 220*220*65 |
| Voltage Rating | AC100-265V |
| Light Source | LED 2835 SMD |
| Power Consumption | 18W /24W |
| Luminous Efficency | 120lm/w 100lm/w 80lm/w |
| Output Colour | daylight, warm white, white |
| Work Frequency | 50/60Hz |
| Power Efficiency | >95% |
| Power Factor | >0.5 |
| CRI | Ra>70/80 |
| Beam Angle | 120° - 140º |
| Colour of Case | Black / White |
| Case Materials | Diffuser:PP+ Base:Alloy PP |
| IP Class | IP65 |
| Equal to Incandescent Lamp | 180W / 240W |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 10-70% RH |
| Dimmable | No |
| Warranty | 3 years / 2 years / 1 year |
| Certificate | IP65 CE RoHS BIS |
| Application | Indoor / Outdoor |
| PCS/CTN | 40pcs / 20pcs |
| CTN Size | 67*36*36cm / 47*39.5*47cm |
Application
Perfect for interior wall and exterior wall and ceiling lighting,
ideal lighting for Tunnels, Parkinig lots , the Subway Stations ,
Workshops , Corridors , Community , Bath Rooms , Bed Rooms, Dinning
Rooms , Restaurants , Office , Kitchen, Hallway, Utility ,
Staircase , Garden , Countyard , Bus Station , Shed , Patio , Car
Washing Stations etc.
Warnings
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
