Not just a bulkhead lights, it can be also used as surface

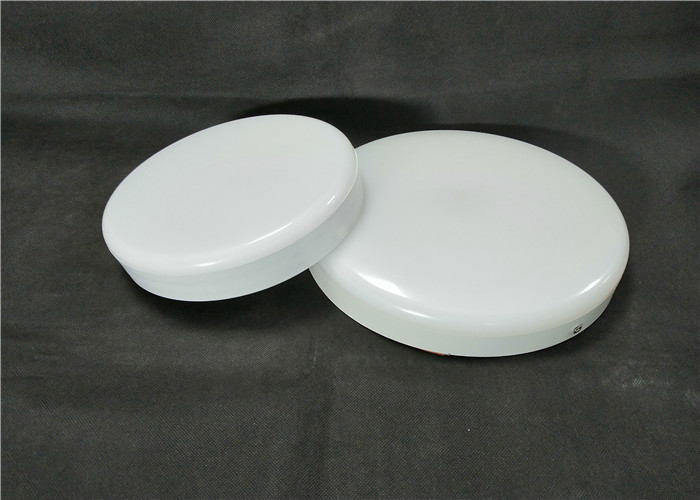

Frameless panel light
Product Description
Super slim and ultra compact design, ready to install at home,
office, restaurants, and more. There is no space in your
imagination that you can not imagine with this awesome lamp
installed (Dimensions 195mm x 38mm).
The LEDs are formed in a integrated and completely assembled
circuit to plug and play, weather resistance, and insects
resistance, it is safety both for indoor and outdoor enviroments.
• Ultra thin design: 38mm , rimless bulkhead light, it can replace
traditional surface panel light completely.
• IP65 - used for exterior lighting and interior lighting, water
resistance and weather resistance.
• 20 watts energy consumption, 2000 lumens output
• Energy efficient LED bulkhead light fitting suitable for outdoor
or indoor use
• LED lamp source - integrated LED no bulbs to change
• ABS body, PS diffuser
• 3000K 4000K 6500K 8000K available, 40000 hours expected uselful
life
• Dimensions: 195mm diameter x 38mm deep
Product Specification
| Power Consumption | 20 Watts |
| Fixture Type | Wall Mount, Ceiling Mount |
| Bulkhead Shape | Round |
| Dimmension (mm) | 1958mm (dia) * 38mm(H) |
| Working Voltage | AC100-265V |
| Light Source | LED SMD2835 |
| Metal Bracket | Included |
| Lumens | 2000lm |
| Light Efficency | >100lm/w |
| Color Temperature | 3000K 4000K 6500K 8000K |
| Work Frequency | 50/60Hz |
| LED Driver | Non Isolated |
| Power Factor | >0.5 |
| CRI | Ra>70/80 |
| Beam Angle | 120° - 140º |
| Finish Colour | White |
| Housing Materials | ABS Base , PC diffusor |
| IP Rating | IP65 |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 10-70% RH |
| Dimmable | No |
| Warranty | 2 years |
| Approvals | IP65 CE RoHS BIS |
| Application | Indoor & Outdoor Lighting |
| PCS/CTN | 30pcs |
| CTN Size (cm) | 68*42*22cm |
Lighting Application
Ideal lighting for Outdoor Courtyard, Tunnels , Parkinig lots , the
Subway Stations , Workshops , Corridors , Community , Bath Rooms ,
Bed Rooms , Dinning Rooms , Restaurants , Office , Kitchen ,
Hallway , Utility , Staircase , Garden , Countyard , Bus Station ,
Shed ,Car Washing Stations, porch, patio, deck, dock or walkway etc.
Warnings
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
