Round Recessed / Surface Integrated 9 Watt Led Panel Light
downlight PC housing
Product Description
With this unit , it can achieve your demand both recessed panel
light and surface panel light

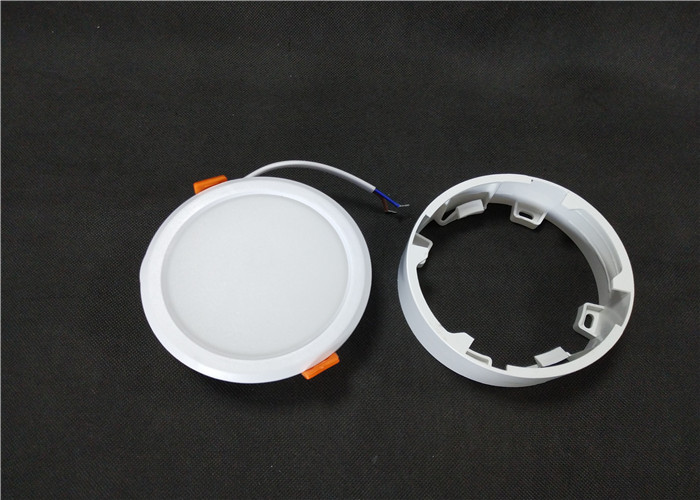

Match the PC bracket, you can change the concealled panel to
surface panel easily.
High quality poly carbonate housing , more relexible and heat
resistance.
Built in dirvier, Integrated design, to stop insects and dust
effectively.
The steps to install the surface panel as following:
1. To fixed the PC bracket to the ceiling with screws
2. To disassemble the two sprinngs
3. To put the panel without springs to the fixed bracket, then push
it.
Product Features
• All poly carbonate housing to assure good quality
• Back lit, high luminous efficiency more than 100lm/w
• Non isolated driver and isolated driver designs for choice
• High PF 0.9 and low PF 0.5 opitional
• For high PF driver, can be also produced flicker and non flicker
as you want
• Can be used as surface panel with match round PC bracket
• Work voltage: AC90-265V , AC170-265V
• 2 years warranty
Product Specifications
Shape |
Watt | Dimmension
(mm) | Cut out
(mm) |
Voltage |
Driver |
PF | Luminous Efficiency |
Housing |
CCT |
|
Round | 9W | ø115*40 | ø100 |
170-265V |
Non isolated |
0.5 |
100lm/w |
PC |
3000-6500K |
| 15W | ø165*40 | ø152 |
| 22W | ø220*40 | ø210 |
Round | 9W | ø115*40 | ø100 |
90-265V |
Non isolated
(Flicker,
Surge:1.5KV) |
0.9 |
100lm/w |
PC |
3000-6500K |
| 15W | ø165*40 | ø152 |
| 22W | ø220*40 | ø210 |
Round | 9W | ø115*40 | ø100 |
90-265V |
Non isolated
(Non Flicker, Surge:1.5KV) |
0.9 |
100lm/w |
PC |
3000-6500K |
| 15W | ø165*40 | ø152 |
| 22W | ø220*40 | ø210 |
Square | 9W | 115*115*40 | 100*100 |
170-265V |
Non isolated |
0.5 |
100lm/w |
PC |
3000-6500K |
| 15W | 165*165*40 | 152*152 |
| 22W | 220*220*40 | 210*210 |
Square | 9W | 115*115*40 | 100*100 |
90-265V |
Non isolated
(Flicker,
Surge: 1.5KV) |
0.9 |
100lm/w |
PC |
3000-6500K |
| 15W | 165*165*40 | 152*152 |
| 22W | 220*220*40 | 210*210 |
Square | 9W | 115*115*40 | 100*100 |
90-265V |
Non isolated
(Non Flicker, Surge:1.5KV) |
0.9 |
100lm/w |
PC |
3000-6500K |
| 15W | 165*165*40 | 152*152 |
| 22W | 220*220*40 | 210*210 |
Applications
• Restaurant / Hotel / Supermarket
• Showroom / Meeting rooms
• Factories / Offices
• Commercial complexes / exhibition hall
• School, Colleges / Universities
• Hospital / Classrooms / Underground Park
• Places where need energy saving and high color rendering index
lighting
Caution:
To be on safety side, must obey the instructions as following:
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
