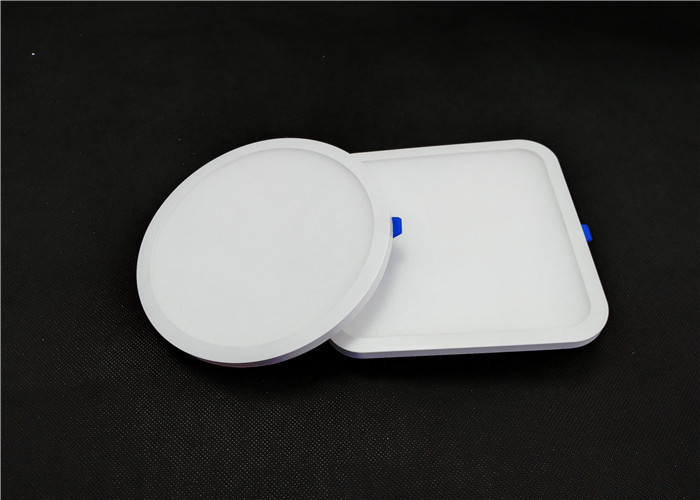

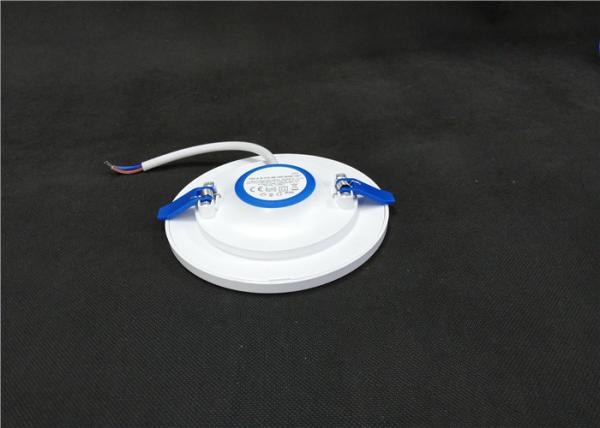

Side Emitting 12W All PC Integrated Slim Border Round Panel Light
super bright 100lm/w PF>0.9
Competitve Advantages
• Super slim border, wide light angle.
• Built in driver, integarted design as BIS standard
• CE standard design, with LED driver separately
• All poly carbonate housings, with auminium reflective cup inside
• Luminous efficiency >100lm/w , luminous flux >1200lm
• High PF design >0.9
• Work Voltage: AC100-265V
• LED driver: non isolated / isolated
Specifications
Power: 12W
Work Voltage: 85-265V AC, 110-265V AC
Color Rendering Index (CRI): >70
SMD Type: 2835
Housing Materials: Poly Carbonate + Aluminium Reflective Cup
Dimmension: Ø130mm
Cut Hole: Ø100mm
Power Factor: >0.9
CRI: Ra>70
CCT: 3000-6500K
Shape | Style | Watt | Dimension | Cutout | Luminous Efficiency | Housing | SMD | CRI | Driver | Voltage | PF |
Round |
Recessed | 12W | ø130mm | ø100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | ø160mm |
| 22W | ø225mm | ø200mm |
Square |
Recessed | 12W | 130*130mm | 100*100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*185mm | 160*160mm |
| 22W | 225*225mm | 200*200mm |
Round |
Surface | 12W | ø130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | / |
| 22W | ø225mm | / |
Square |
Surface | 12W | 130*130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*130mm | / |
| 22W | 225*225mm | / |
Applicable For
• It is perfect option for low plenum clearance for indoor
lighting, such as residential, hospitality, school, underground
park, restaurant, hotel, supermarket, showroom, meeting room ,
workshop, office , exhibition hall , commercial and multifamily
• applications with confined, hard to reach spaces such as closets,
attics, hallways, stairwells, elevators, soffits, porches and entry
ways.
Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
