LED Round Flat Panel Lighting Recessed Integratred White Ceiling
Light Dia 225mm

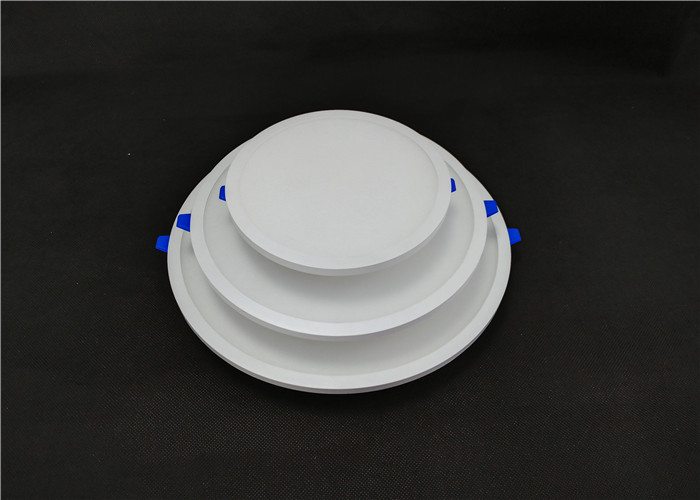

22W LED Round Flat Panel Lighting Recessed Integratred White
Ceiling Light
Product Overview
This flat integrated panel. light thoughtfully designed for
superior illumination, ultimate efficiency and easy installation,
it offers a larger lighting space due to its super slim border 9mm,
when wiring and a sturdy concave-convex backplate for no light
leakage, high quality PC frame guarantees perfect light output
without the risk of yellowing.
Available 12W 18W 22W , high power factor more than 0.9
Bright White (4000K), Cool White (6500K) , and Warm White (3000K)
as you like
Buitl in driver inside for BIS standard, separate driver for CE
standard
Specifications
Brightness: 2200 Lumens
PF: >0.9
CRI: Ra>70
Dimmension: Ø225*30mm(H)
Hole Size: Ø200mm
Lifespan: 40,000hrs
Energy used: 22-Watt
120° beam angle
2-year warranty-manufacturer guaranteed performance
Non dimmable
Certifications: CE BIS EMC LVD RoHS
Damp rated: suitable for indoor use
Shape | Style | Watt | Dimension | Cutout | Luminous Efficiency | Housing | SMD | CRI | Driver | Voltage | PF |
Round |
Recessed | 12W | ø130mm | ø100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | ø160mm |
| 22W | ø225mm | ø200mm |
Square |
Recessed | 12W | 130*130mm | 100*100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*185mm | 160*160mm |
| 22W | 225*225mm | 200*200mm |
Round |
Surface | 12W | ø130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | / |
| 22W | ø225mm | / |
Square |
Surface | 12W | 130*130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*130mm | / |
| 22W | 225*225mm | / |
Applicable For
• It is perfect option for low plenum clearance for indoor
lighting, such as residential, hospitality, school, underground
park, restaurant, supermarket, showroom, meeting room , workshop,
office , exhibition hall , commercial and multifamily
• Commercial and exhibition locations, hotel, conference room,
factory, office, house, airport, metro, station, school, hospital,
etc.
• Applications with confined, hard to reach spaces such as closets,
attics, hallways, stairwells, elevators, soffits, porches and entry
ways.
Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
