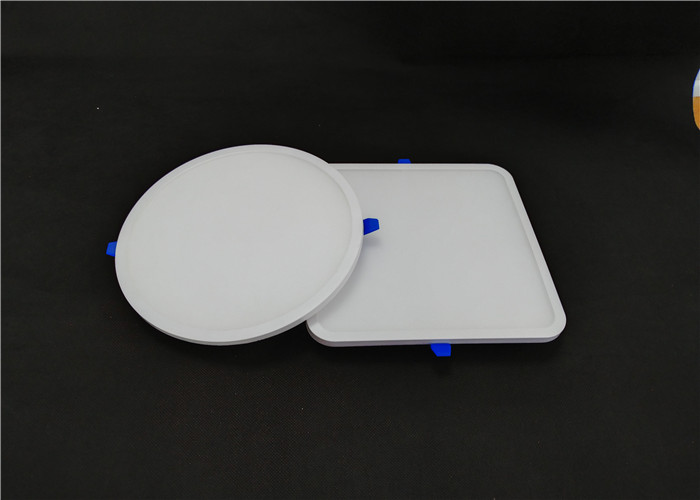

Poly Carbonate White 18W Round Flat Recessed LED Panel Light
Integrated Downlights
White PC 18W Round Flat Recessed LED Panel Light Integrated
Downlights 1800lm
Product description
Features:
Brand: XENTER
Wattage: 18W
Color Temperature: Warm White: 3000K, Cool White: 6500K, Neutral
Light: 4000K
Voltage: AC85-265V 50/60Hz
Lumen: approx. 1800 Lumen
Beam angle: 120 degree
Dimmable: Not
Dimension: Ø185mm
Borehole size: 160mm
installation depth: approx 30mm
Technical Data:
Lifespan: about 30.000 hours
Energy Saving: 85%
Power Factor: >0.9
Color Rendering Index: Ra>70
Material: high quality poly carbonate + aluminium
High color quality with minimal UV radiation
Low energy consumption with high efficiency 100lm/w
Built in driver & separate driver , two designs
Approval: CE, BIS
Shape | Style | Watt | Dimension | Cutout | Luminous Efficiency | Housing | SMD | CRI | Driver | Voltage | PF |
Round |
Recessed | 12W | ø130mm | ø100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | ø160mm |
| 22W | ø225mm | ø200mm |
Square |
Recessed | 12W | 130*130mm | 100*100mm |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*185mm | 160*160mm |
| 22W | 225*225mm | 200*200mm |
Round |
Surface | 12W | ø130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | ø185mm | / |
| 22W | ø225mm | / |
Square |
Surface | 12W | 130*130mm | / |
100lm/w |
PC+Alu Cup |
2835 |
Ra>70 |
Non Isolated |
100-265V |
>0.9 |
| 18W | 185*130mm | / |
| 22W | 225*225mm | / |
Applicable For
• It is perfect option for low plenum clearance for indoor
lighting, such as residential, hospitality, school, underground
park, restaurant, supermarket, showroom, meeting room , workshop,
office , exhibition hall , commercial and multifamily
• Commercial and exhibition locations, hotel, conference room,
factory, office, house, airport, metro, station, school, hospital,
etc.
• Applications with confined, hard to reach spaces such as closets,
attics, hallways, stairwells, elevators, soffits, porches and entry
ways.
Attention
1. Cut off the power before installation
2. Cant be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
