24W Round White Frameless Coffered Ceiling LED Panel Light Cut Hole
Dia 200mm

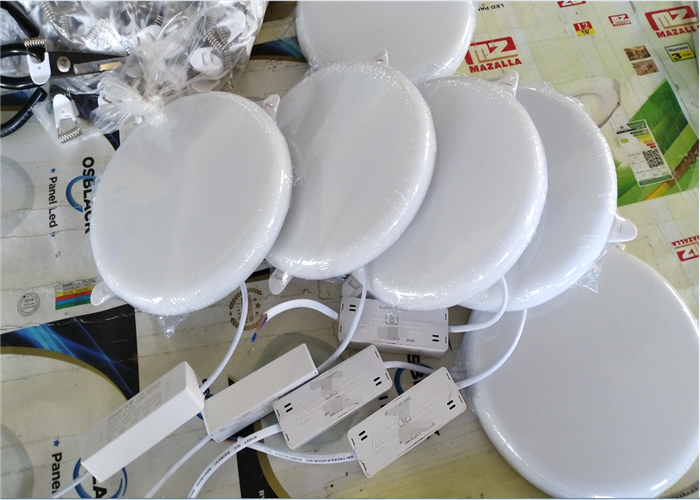

About Frameless LED Panels
This LED panel has very concise and delicate design without any
frame on edge. When powered on , it looks very beautiful, super
bright with even light output - thanks to high quality backlit
panel. Each of this frameless LED panel can replace any Ø225 panels
directly.
The back emitting technology created concise appearance, excellent
uniform light , it can be merged into various decoration styles to
build a comfortable and bright living or working environment, so it
can be widely used in commercial, residential and general lighting
such as offices, hotels, meeting rooms, etc..
The LED panel uses high quality SMD LED (2700-8000K CCT available)
as light source to ensure illumination quality, low light decay,
over 40,000 hours lifetime and at least 50%~80% energy saving.
Using die cast aluminum housing materials, the surface temperature
can be released quickly.
| 24W Round Frameless Panel |
| Project | Parameter |
| LED | SMD2835 |
| Luminous Efficiency | 90-100lm/w |
| Luminous Fluxe | 2300lms |
| CCT | 3000K 4000K 6000K 8000K |
| CRI | >70 |
| Beam Angle | 180º |
| LED Lifespan | ≥40000 Hours |
| Driver Input Voltage | AC85-265V /50-60Hz |
| Power Factor | >0.5 |
| IP Rating | IP20 |
| Materials | Die Cast Aluminium+PP Diffusor |
| Frame Finishing | White |
| Installation | Concealed |
Specifications For all Models
| Shape | Watt | Driver | Luminous Efficiency | Size
(mm) | Cutout
(mm) | CCT | PCS/CTN | CTN Size
(cm) |
Round
| 9W |
Isolated
85-265V
|
90-100lm/w
| ø90 | ø65mm | 3000K-8000K | 100 | 53.5*38.5*29 |
| 18W | ø120 | ø100mm | 3000K-8000K | 50 | 55*22*33 |
| 24W | ø170 | ø150mm | 3000K-8000K | 20 | 75.5*22*22.5 |
| 36W | ø225 | ø200mm | 3000K-8000K | 20 | 95*22*27.5 |
Square
| 9W |
Isolated
85-265V
|
90-100lm/w
| 90*90 | 65*65 | 3000K-8000K | 100 | 53.5*38.5*29 |
| 18W | 120*120 | 100*100 | 3000K-8000K | 50 | 55*22*33 |
| 24W | 170*170 | 150*150 | 3000K-8000K | 20 | 75.5*22*22.5 |
| 36W | 225*225 | 200*200 | 3000K-8000K | 10 | 95*22*27.5 |
Applications For
1. General room lighting in ceilings, suspended ceilings
2. Interior lighting such as bed room, class room, study room,
super market, store, wareshouse
3. Coffered ceiling lighting
4. Cabinet lighting
5. Lobby lighting
6. Sculpture and statue illumination
Warnings
1. Cut off the power before installation
2. Can't be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , they are sealed completely
6. To install it by professional electrician
