    Wide View Angle 180º 24W Frameless LED Panel Light

    Ask Lasest Price
    Brand Name : XENTER
    Model Number : XT-AL-SQ-24W
    Certification : BIS CE RoHS IP65
    Supply Ability : 5000pcs/day
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

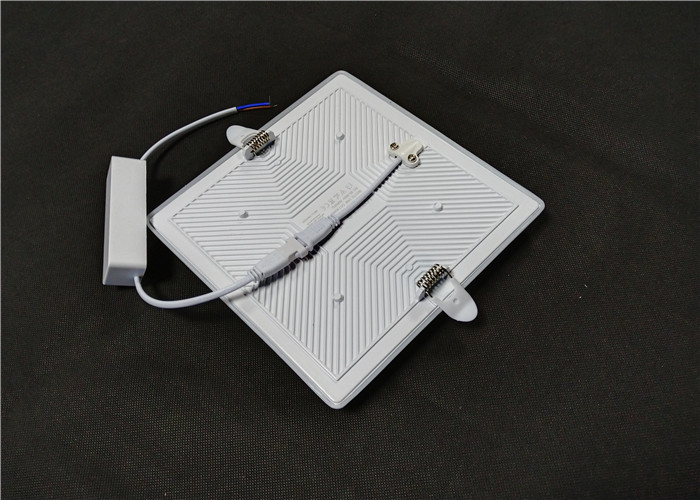

    Wide View Angle 180º 24W Frameless LED Panel Light


    White Square Edgeless Recessed LED Panel Light 24W Ideal For Indoor Lighting



    Technical Descriptions:


    • CCT: 3000K/4000K/6500K
    • Intelligent constant current driver, protection from overheat, short circuit and under voltage
    • Recessed mounted LED Panel Light
    • High-quality chip
    • High light efficiency more than 90lm/w , better lumen maintenance
    • Luminaire shell in die cast aluminium housings
    • 180° wide view angle
    • Quick and easy installation


    24W Frameless Panel Photometric Parameters
    ProjectParameter
    LEDSMD2835
    Luminous Efficiency>90lm/w
    Luminous Fluxe2290lms
    CCT3000K 4000K 6000K 8000K
    CRI>70
    Beam Angle180º
    LED Lifespan≥40000 Hours

    24W Frameless Panel Electrical Parameters
    Driver Input VoltageAC85-265V /50-60Hz
    Power Factor>0.5
    Rating IPIP20
    MaterialDie Cast Aluminium+PP Diffusor
    Frame FinishingWhite
    InstallationRecessed
    Working Temperature-30~+45℃
    Storing Temperature-40~+60Ċ

    Specifications For all Models

    ShapeWattDriverLuminous EfficiencySize
    (mm)
    Cutout
    (mm)
    CCTPCS/CTNCTN Size
    (cm)




    Round

    9W




    Isolated
    85-265V




    90-100lm/w

    ø90ø65mm3000K-8000K10053.5*38.5*29
    18Wø120ø100mm3000K-8000K5055*22*33
    24Wø170ø150mm3000K-8000K2075.5*22*22.5
    36Wø225ø200mm3000K-8000K2095*22*27.5




    Square

    9W




    Isolated
    85-265V




    90-100lm/w

    90*9065*653000K-8000K10053.5*38.5*29
    18W120*120100*1003000K-8000K5055*22*33
    24W170*170150*1503000K-8000K2075.5*22*22.5
    36W225*225200*2003000K-8000K1095*22*27.5




    Applications For

    1. General room lighting in ceilings, suspended ceilings
    2. Interior lighting such as bed room, class room, study room, super market, store, wareshouse
    3. Coffered ceiling lighting
    4. Cabinet lighting
    5. Lobby lighting
    6. Sculpture and statue illumination


    Warnings

    1. Cut off the power before installation
    2. Can't be used as emergency light
    3. To keep them away for the flammable objects.
    4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
    5. Do not try to open this unit , they are sealed completely
    6. To install it by professional electrician
