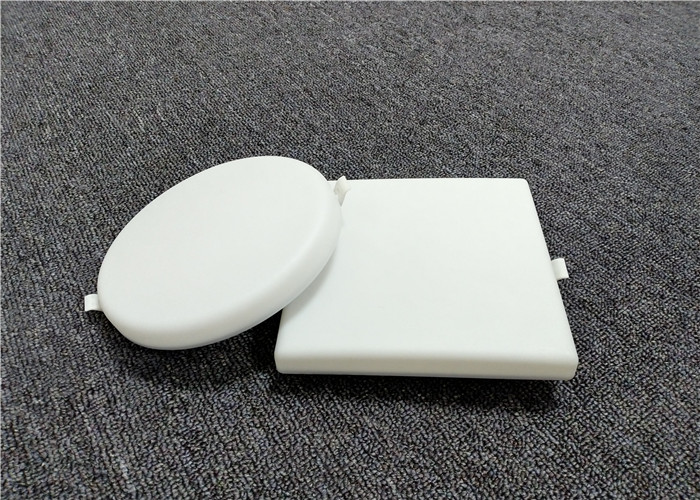

3000-8000K Round Adjustable Edgeless White Recessed Round Panel
Product Advantages
• Integrated adjustable cut out panel light , built in drvier to
save the space
• Back lit design, high bright , luminous efficiency more than
90lm/w, luminous flux more than 900 lumens
• Rimless design, makes it large lighting space compared with
traditional panel light
• 2 color panel and 1 color panel optional
• Punch stamp iron back plate, economical panels to meet keen
market competation
• 9W 18W 24W 36W panels for choice.
Round Adjustable Framelss LED Panel Light
| Power Consumption | 9W 18W 24W 36W |
| Mount Type | Recessed |
| Shape | Round |
| Dimmension (D*H) | Ø90mm*20mm |
| Cut Out Size | Ø60-75mm |
| Work Voltage | AC85-265V / AC175-265V |
| Lamp Type | SMD2835 |
| Housing Materials | Punch Stamp Iron |
| Luminous Efficiency | >90lm/w |
| Diffusor Mateirals | PP |
| Frequency | 50/60Hz |
| LED Driver | Isolated / Non Isolated |
| Power Factor | >0.5 |
| Colour Rendering Index (CRI) | Ra>70 |
| Dimmable | Non-Dimmable |
| Warranty | 2 years |
Adjustable Frameless Panel Light Specification
| Shape | Watt | Driver | Luminous Efficiency | Size
(mm) | Cutout
(mm) | CCT | PCS/CTN | CTN Size
(cm) |
Round | 9W |
Isolated
85-265V |
90-100lm/w | ø90*20 | ø60-75 | 3000K-8000K | 100 | 56*44.5*22 |
| 18W | ø118*20 | ø60-100 | 3000K-8000K | 80 | 63*36*26 |
| 24W | ø170*20 | ø60-150 | 3000K-8000K | 40 | 44.5*36*36 |
| 36W | ø220*20 | ø60-200 | 3000K-8000K | 20 | 45*44.5*24 |
Square | 9W |
Isolated
85-265V |
90-100lm/w | 90*90 | 60-75 | 3000K-8000K | 100 | 56*44.5*22 |
| 18W | 120*120 | 60-100 | 3000K-8000K | 80 | 63*36*36 |
| 24W | 170*170 | 60-150 | 3000K-8000K | 40 | 44.5*36*36 |
| 36W | 225*225 | 60-200 | 3000K-8000K | 10 | 45*44.5*24 |
Lighting Applications
1. General room lighting in ceilings, suspended ceilings
2. Interior lighting such as bed room, class room, study room,
super market, store, wareshouse
3. Coffered ceiling lighting
4. Cabinet lighting
5. Lobby lighting
6. Sculpture and statue illumination
Warnings
1. Cut off the power before installation
2. Can't be used as emergency light
3. To keep them away for the flammable objects.
4. The environment temperature of the lamp operation: -20Ċ to +60Ċ
5. Do not try to open this unit , to have the professional person
to open it
6. Internal lighing only, can be used outside lighting
